APPVOLS and UEM - a great partnership

APPVOLS and UEM - a great partnership

I have been recently been working on a project deliver applications with VMware Appvols to View VDI Desktops. User Environment Manager (UEM) is also employed to roam the user preferences and predefined settings for those apps, these technologies are working really well and offer a significant improvement over using ThinApp alone and View Persona Management.



The application capture process with AppVols is fairly straightforward. Below I will give you a basic run though of the process.

Capturing the App

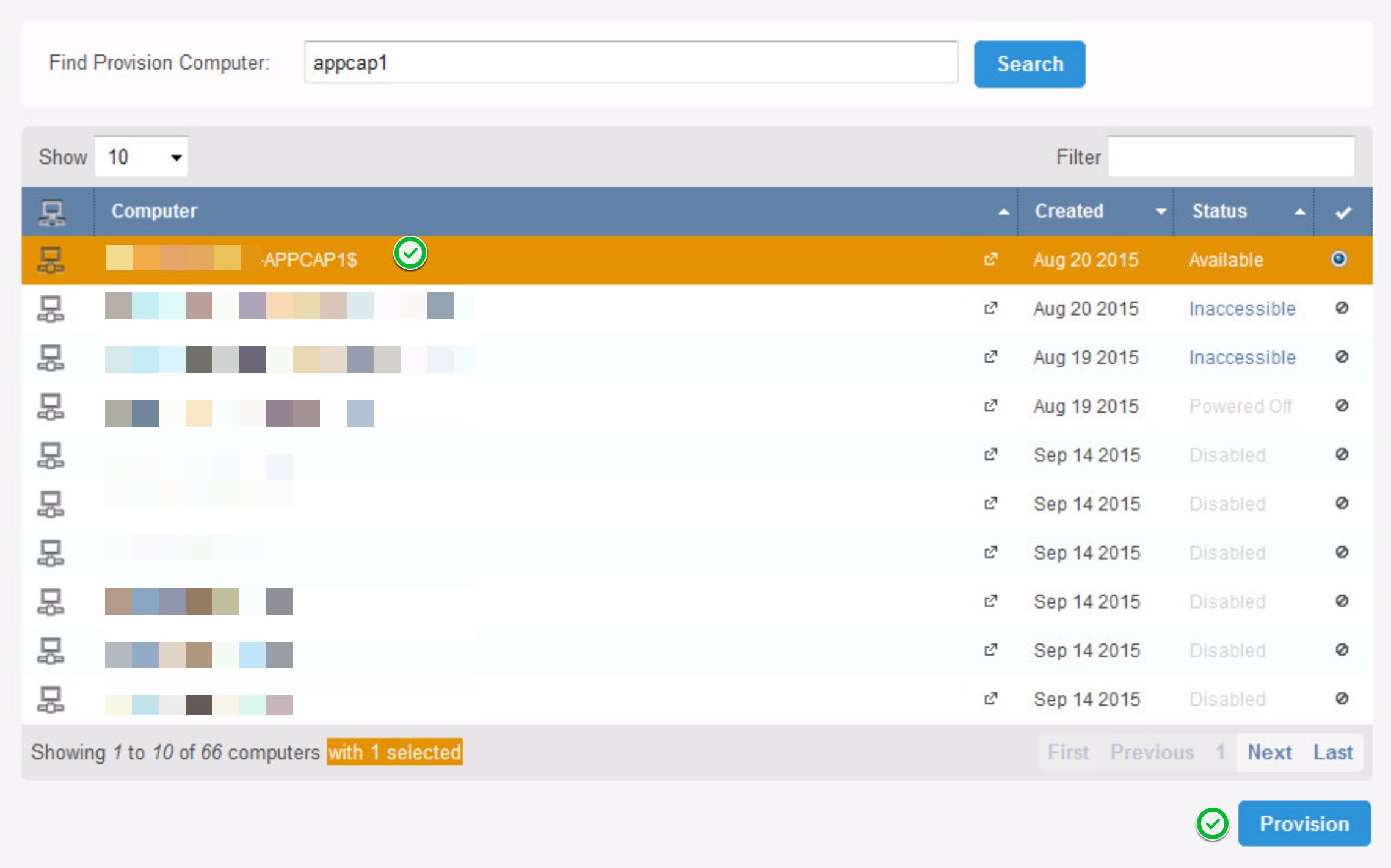

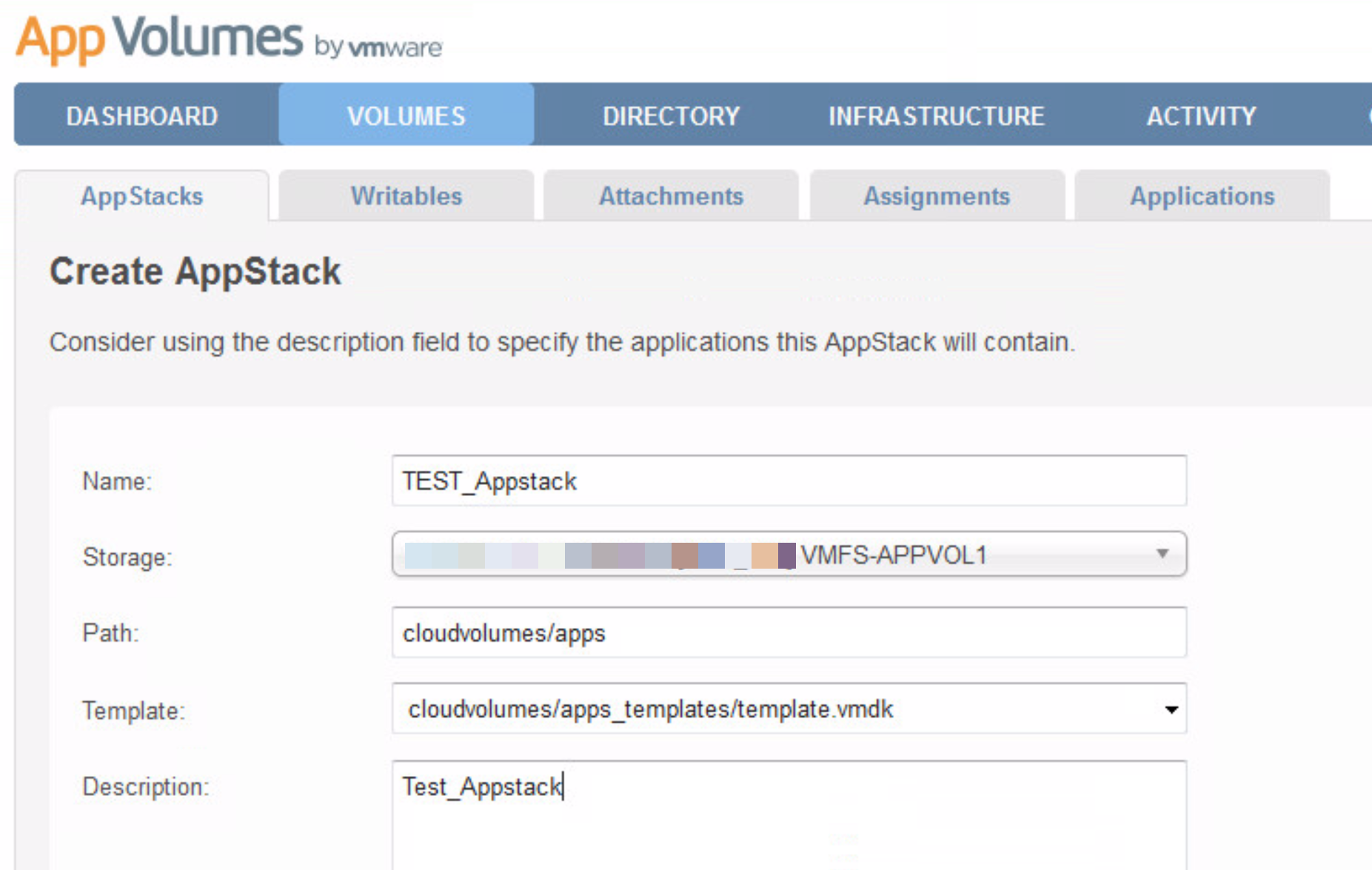

  •  Provision an Appstack and attach it to a capture VM.

Step One


Step Two

Step Three

  • Install your applications natively on the capture VM and test that they work.
  • Finish the provisioning and assign to an AD object be it user /group /computer /OU etc.

**As the apps are installed as if natively installed it drastically simplifies the process from some virtualisation/packaging procedures.

Capturing the application settings with UEM

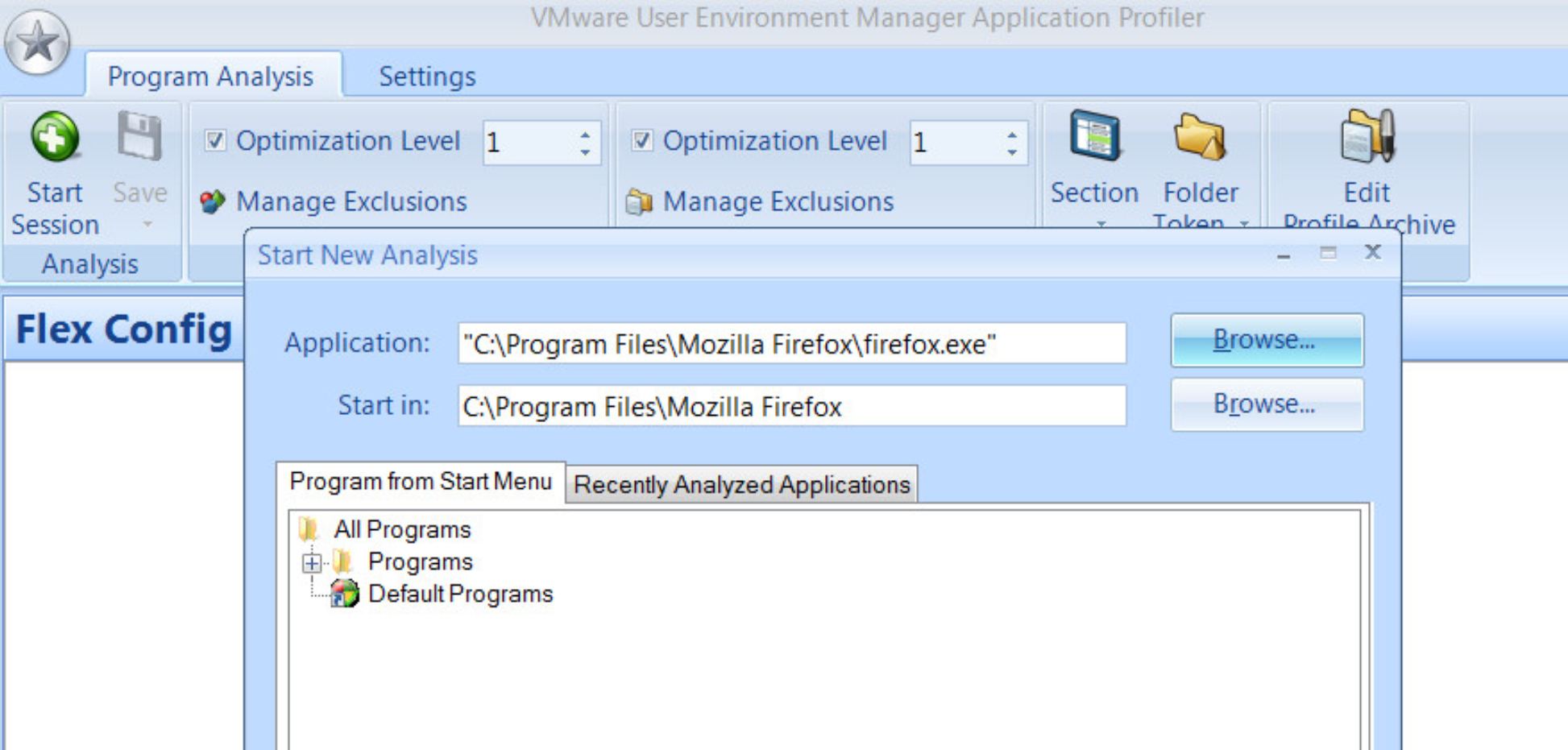

  • Launch the application through the UEM profiler on a UEM capture machine.

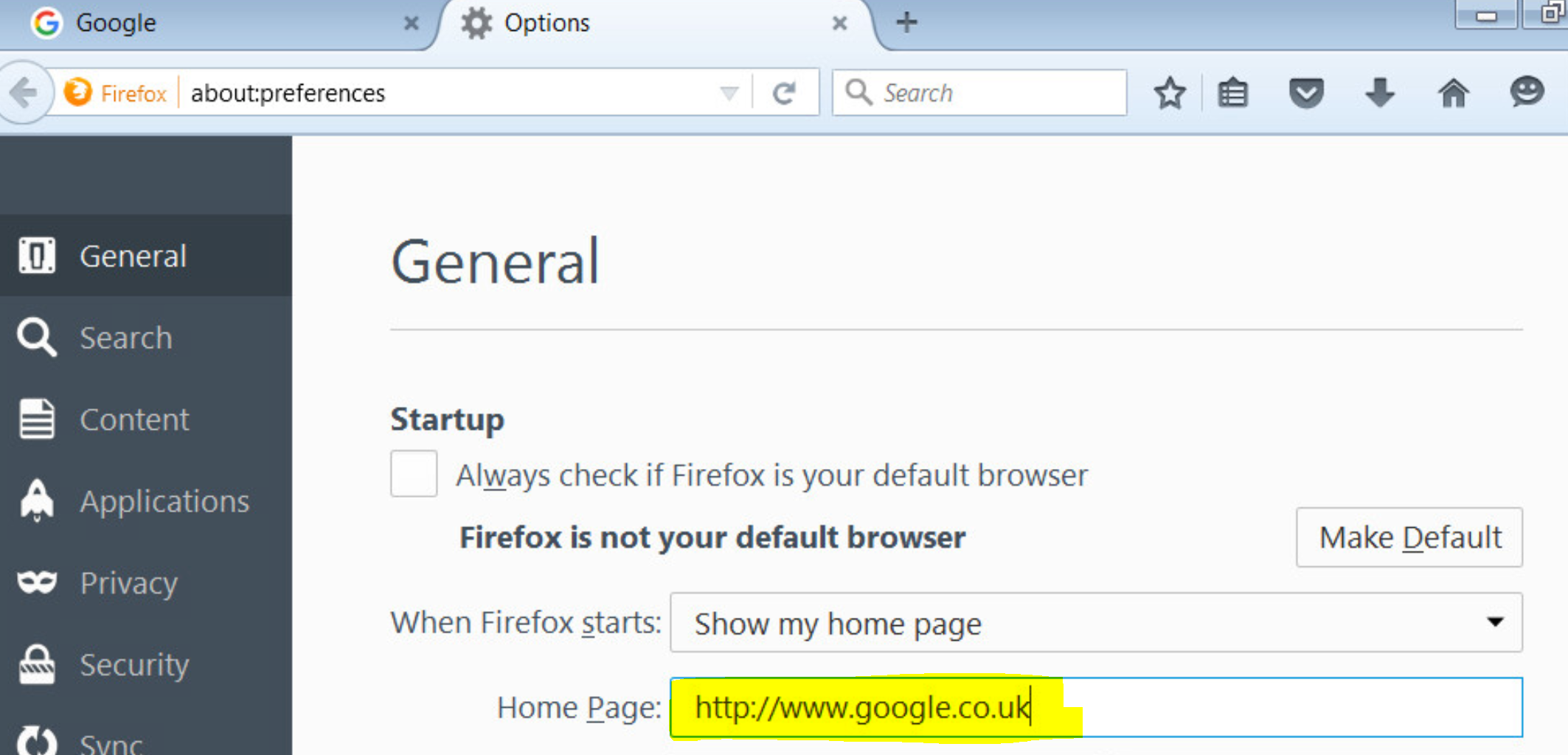

  • Set any predefined settings in the app.

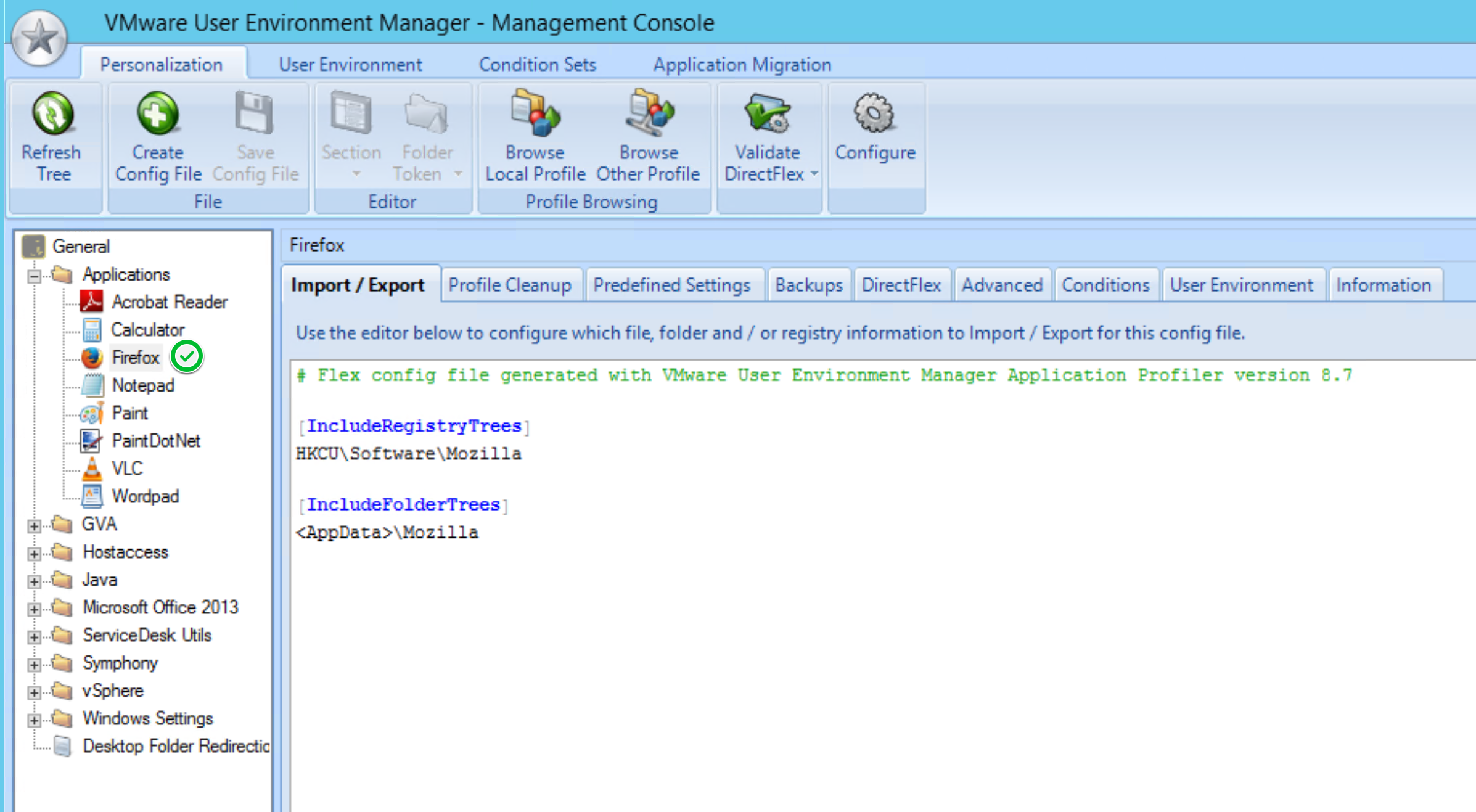

  • Save the configuration file(s).
  • Apply the settings as required.
  • This enables the environment to provide the user with their applications and associated settings/preferences that follow them across non-persistent floating VDI sessions.
  • I have set the personalised application settings to load on launch of the app executable so UEM is very efficient by only loading the settings when the app is in use.

UEM also comes with some built in templates for common applications (such as Office and Adobe Reader) saving time with deployment.

The predefined settings are loaded on demand on the first launch of the app and subsequent user changes are then added to the settings files and persist.

I am really impressed with what I have seen so far so stay tuned for some further articles!
